OTESting
OTESting - First commercial milestone
The OTESting will be a sub-orbital fully reusable single stage micro-launcher based on the R2D2 design. It will be equipped with 8 PEPEk-1 enginesand later with 4 PEPEk-1 and a single PEPEk-4 engine. It will be able to lift approx. 50kg of payload to approx. 150km altitude. It will provide a 3.5 to 5 minutes at microgravity conditions.
Specifications
| Concept | Single stage, fully reusable, vertical launch and landing |
| Payload | 30-60kg |
| Total nominal thrust | 9.2kN |
| Altitude | 130 - 210km |
| Time in Micro-G | 3 - 5min |
| Take-off mass | 620-650kg |
| Empty mass | 90kg |
| Max diameter | 600mm |
| Height | ~3m |
| Payload bay dimension | |
| Dynamic pressure at Max Q | 20kPa |
| Max G-load | 5G |
Max 2h pre-flight preparation (incl. fueling, inspections, excl. payload integration.)
Ultimate mission price: 40kEUR.

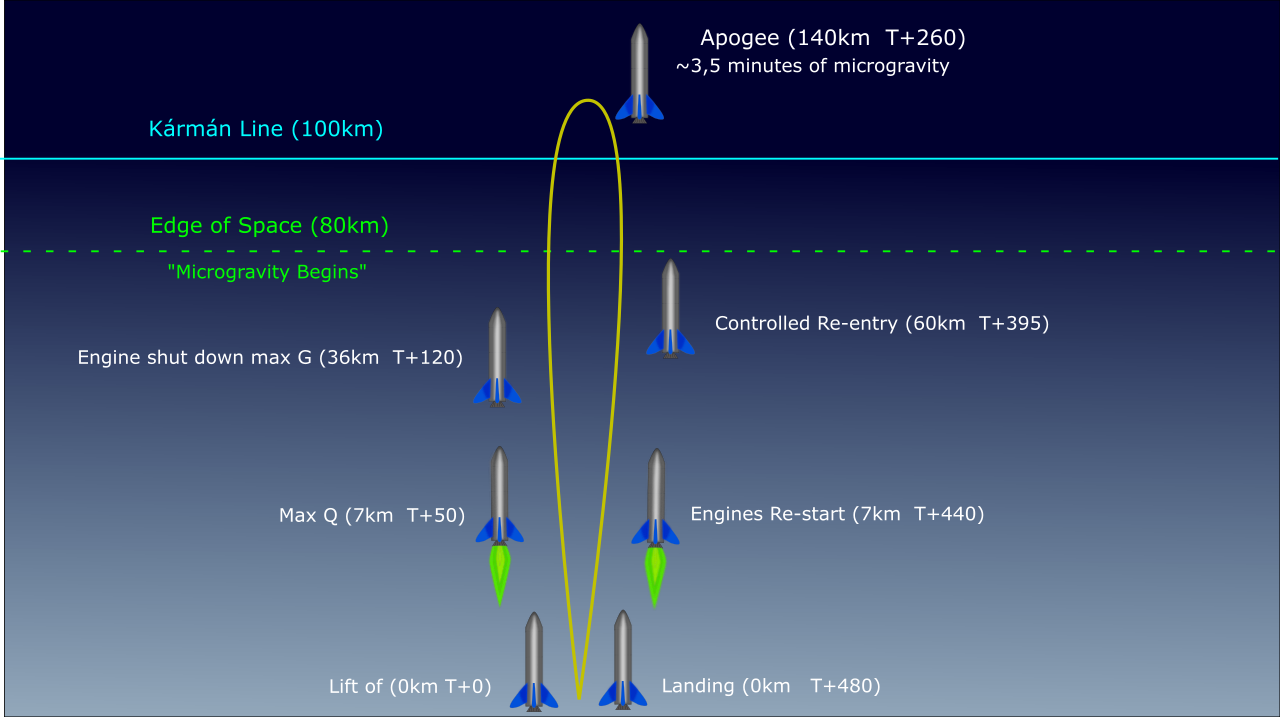

Mission profile
| Event | Time (s) | Approx. altitude MSL (km) |
|---|---|---|
| Engines ignite | T-5 | 0 |
| Liftoff | T+0 | 0 |
| Max Q | T+50 | 7 |
| Engines shut down (max G) | T+120 | 36 |
| Apogee (~140km) | T+260 | 120 |
| Re-entry control starts | T+395 | 60 |
| 4 Engines re-start | T+440 | 7 |
| Landing | T+480 | 0 |
